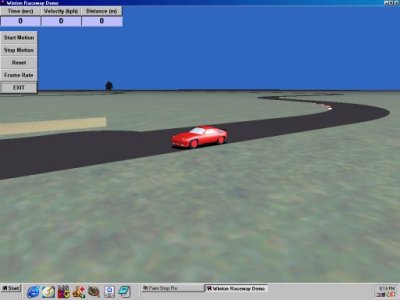

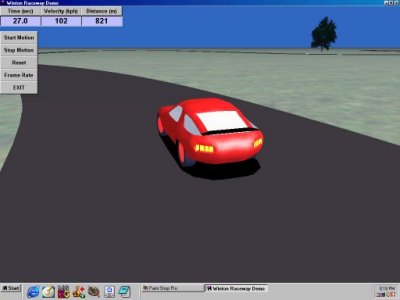

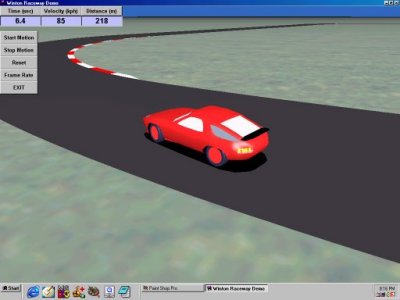

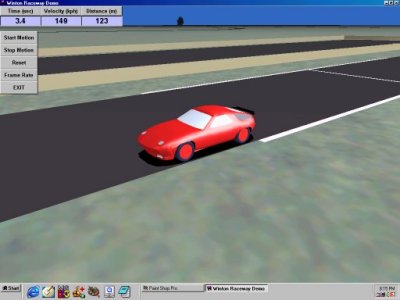

The four images displayed on this page are representative of a typical motion path display.

These are frames from a real time replay program, animating a lap of Winton Racetrack. The motion path was generated using our
ANALYSE program and a custom replay program then written to display the results.

Depending on the computer power and graphics hardware being used, this replay can run at anything up to 50 frames per second, with each frame calculated "on the fly". Basic vehicle data is displayed on the computer screen as the animation runs. The viewpoint can be moved interactively, so the motion path can be viewed from anywhere while the animation is running.
