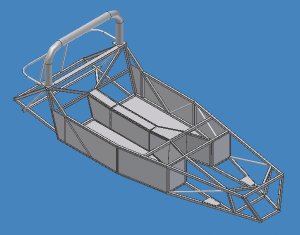

Type 1 Chassis Type 1

Standard LOCOST 7 Clubman chassis design, as specified in the book, "Build Your Own Sports Car for as Little as 250 Pounds".

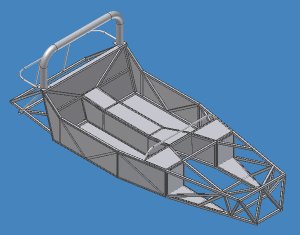

Type 2 Chassis Type 2

Modified chassis design, to meet the Australian Design Rules requirements (torsion and bending) for a car with a 4 cylinder engine.

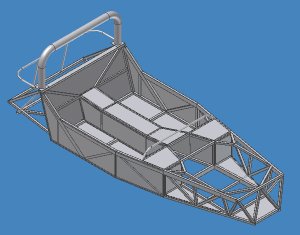

Type 3 Chassis Type 3

Modified chassis design, to meet the Australian Design Rules requirements (torsion and bending) for a car with a 6 or 8 cylinder engine.
Type 4 Chassis
Type 4

Modified Type 2 chassis design, to allow direct fitment of a Mazda MX-5 rear subframe as part of the structure.

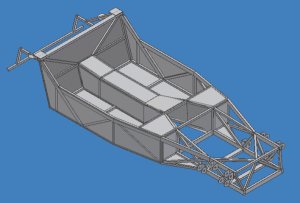

Type 5 Chassis
Type 5

Modified Type 3 chassis design, to allow direct fitment of a Mazda MX-5 rear subframe as part of the structure. The front structure has also been modified for the Mazda front end.

Type 6 Chassis
Type 6

Modified Type 3 chassis design, to allow direct fitment of a Mazda MX-5 rear subframe as part of the structure.

We have produced 3D CAD models of the above chassis designs, with
the intention of performing stress analyses on all the designs.

We hope more detailed information on this will be available shortly.

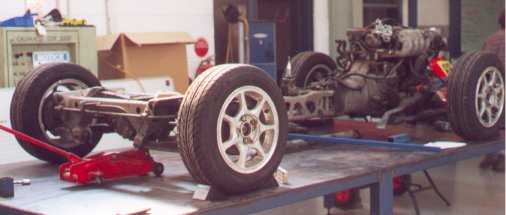

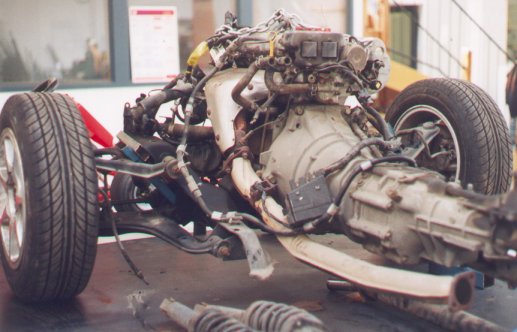

Photographs of the donor vehicle for our first Type 6 chassis are shown below.




If this is of interest, you are welcome to contact us for more information.
